9" L/L Multi-Ply Bellows / 9″ L/L Multi-Ply Bellows – Size 5”
Categories

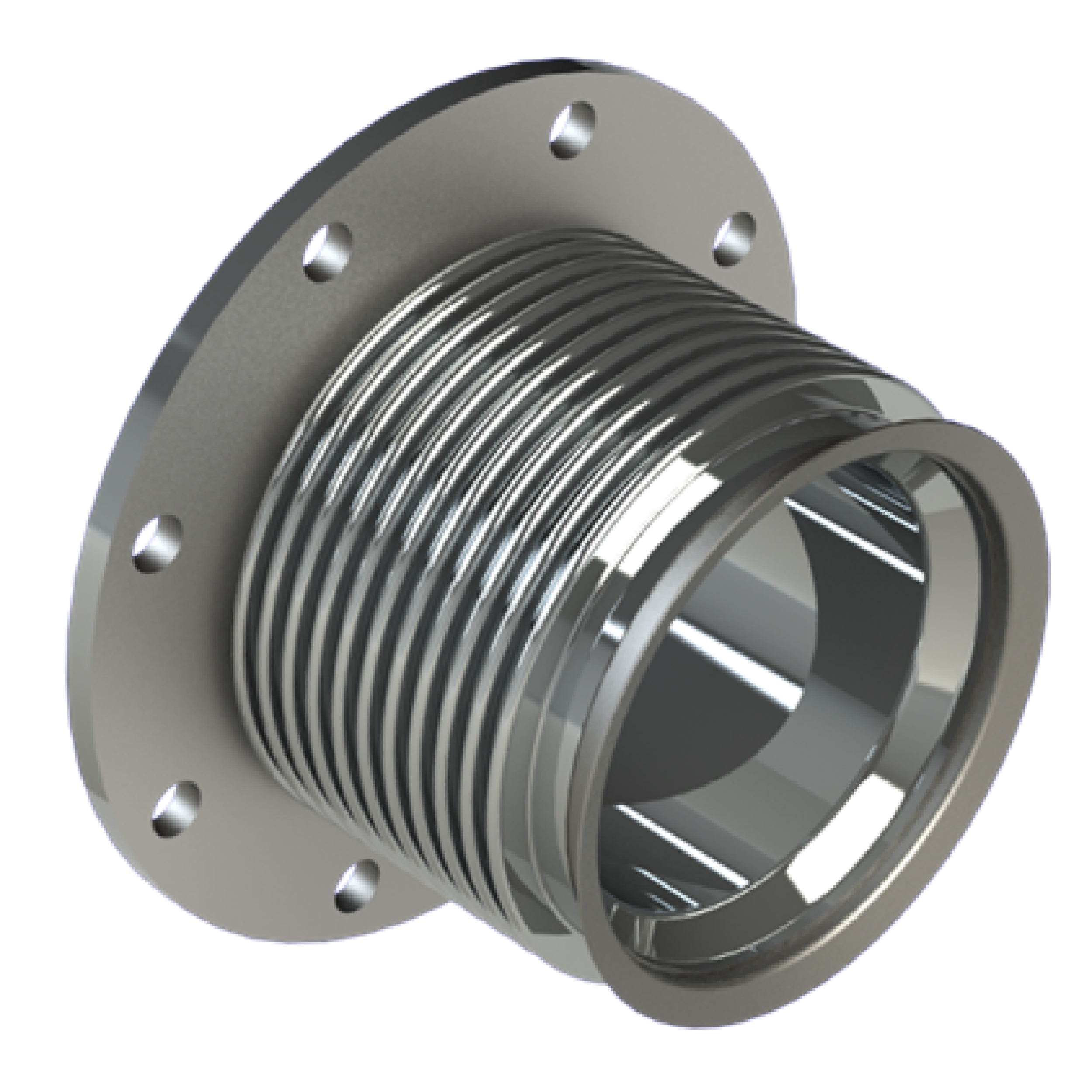

9" L/L Multi-Ply Bellows - Size 5”

9" L/L Multi-Ply Bellows - Size 5”
9" L/L Multi-Ply Bellows - Size 5” - Image 2
9" L/L Multi-Ply Bellows - Size 5” - Image 3
Product Code: 50-5095220

Rated: 5 PSIG @ 1000F

Options
Size 5” Size 6” Size 8” Size 10” Size 12” Size 14”
Talk To An Expert

Additional information

Size

5”
Inlet Inside Diameter

5”
Outlet Inside Diameter

5”
Overall Length

12”
Axial Compression

3.00”
Axial Spring Rate

64
Lateral Offset

1.00”
Lateral Spring Rate

39
