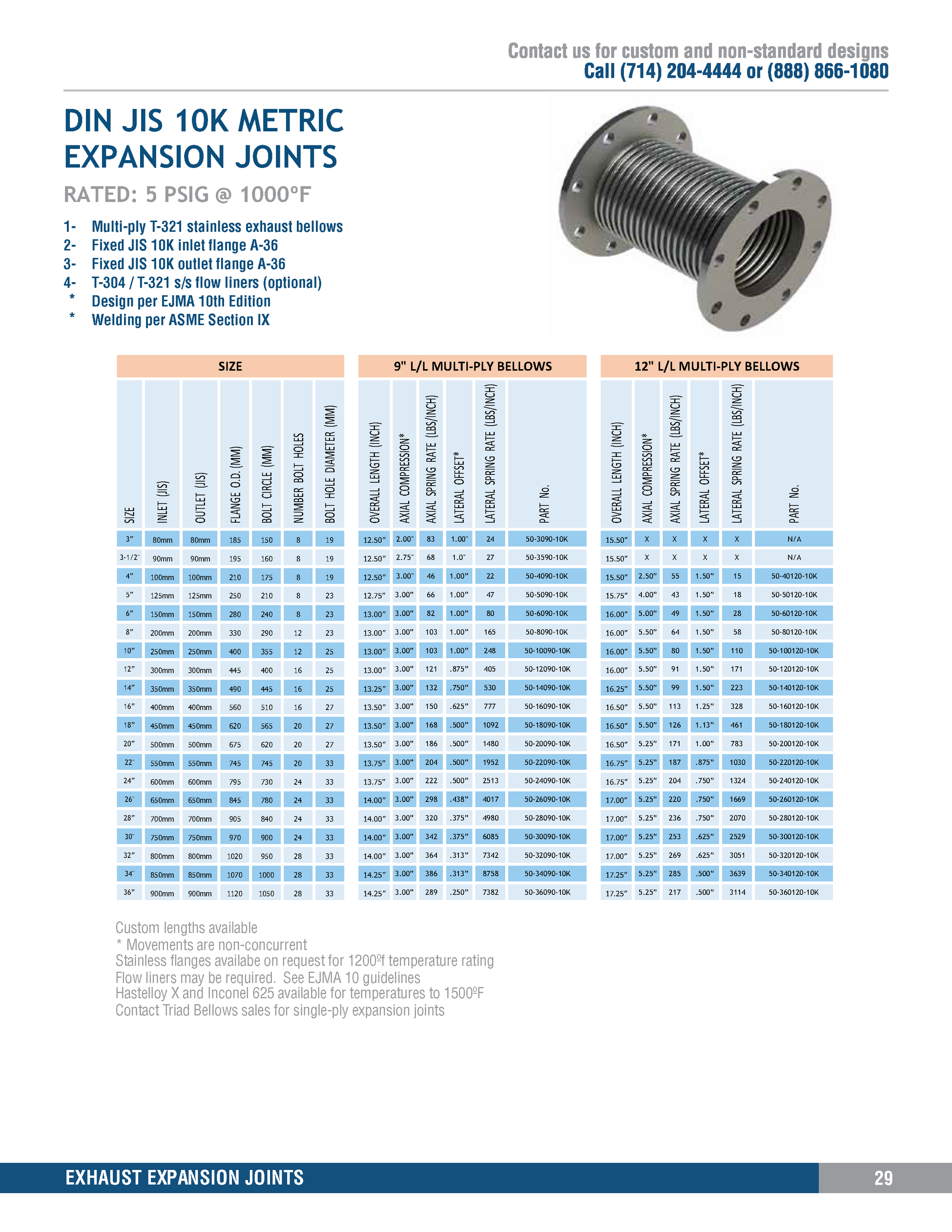

9" L/L Multi-Ply Bellows - Size 5”
Rated: 5 PSIG @ 1000ºF
Options
Additional information
| Size | 5” |
|---|---|
| Inlet (JIS) | 125mm |
| Outlet (JIS) | 125mm |
| Flange O.D. (MM) | 250 |
| Bolt Circle (MM) | 210 |
| Number Bolt Holes | 8 |
| Bolt Hole Diameter (MM) | 23 |
| Overall Length | 12.75” |
| Axial Compression | 3.00" |
| Axial Spring Rate | 66 |
| Lateral Offset | 1.00" |
| Lateral Spring Rate | 47 |
