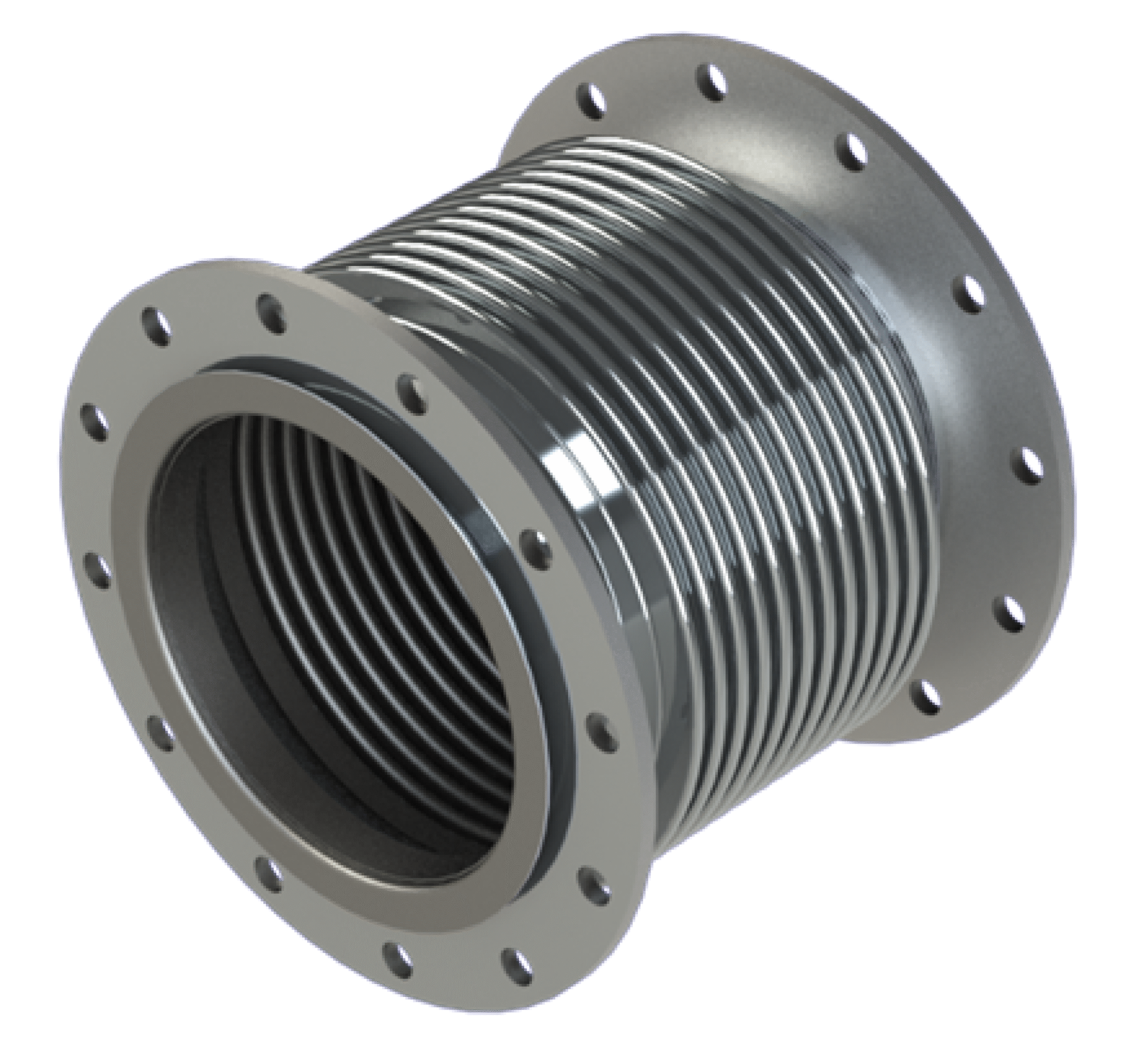

12" L/L Multi-Ply Bellows - Size 48”- Outlet 48”

12" L/L Multi-Ply Bellows - Size 48”- Outlet 48”

12" L/L Multi-Ply Bellows - Size 48”- Outlet 48” - Image 2

12" L/L Multi-Ply Bellows - Size 48”- Outlet 48” - Image 3

Product Code: 50-48012030

Rated: 5 PSIG @ 1000F

Options

Talk To An Expert

Additional information

Size	48”
Inlet Inside Diameter	48”
Outlet Inside Diameter	48”
Overall Length	16”
Axial Compression	5.25”
Axial Spring Rate	286
Lateral Offset	.375”
Lateral Spring Rate	7198
