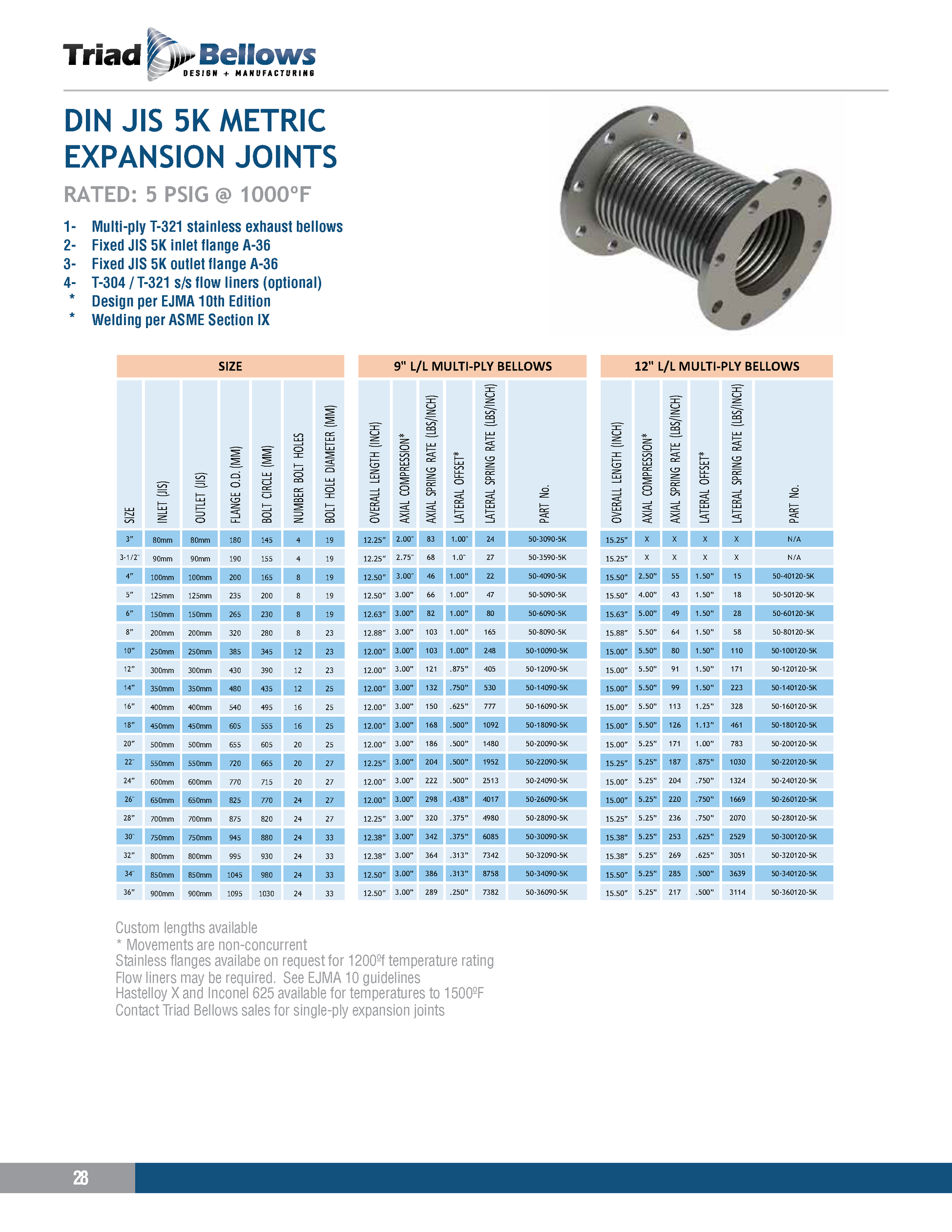

12" L/L Multi-Ply Bellows - Size 20"
Rated: 5 PSIG @ 1000ºF
Options
Additional information
| Inlet (JIS) | 500mm |
|---|---|
| Outlet (JIS) | 500mm |
| Flange O.D. (MM) | 655 |
| Bolt Circle (MM) | 605 |
| Number Bolt Holes | 20 |
| Bolt Hole Diameter (MM) | 25 |
| Overall Length | 15.00” |
| Axial Compression | 5.25” |
| Axial Spring Rate | 171 |
| Lateral Offset | 1.00” |
| Lateral Spring Rate | 783 |
